Home > Products > PHYSICS > Electric meters

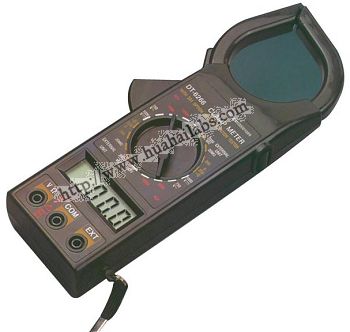

P01026, 266 Series Clamp Meter

It is a portable hand carry clamp multimeter. It has 3 ¹/₂ digits LCD polarity with polarity and low battery indication.

MODEL	(DT-266)	(DT-266C)	(DT-266F)
Function	Measuring range	Measuring range	Measuring range
DCV	1000V±0.8%	0.2/2/20/200/1000V±0.05~0.8%	2/20/200V±0.5%, 1000V±0.8%
ACV	600V±1.2%	200/600V±1.0%	200/600V±1.0%
ACA	200~600A±2.0%, 600~1000A±3.0%	200~400A±2.0%	200~600A±2.0%, 600~1000A±3.0%
Resistance	200Ω~20KΩ±1.0%	200Ω/20KΩ/2MΩ±1.0%	200Ω/2KΩ/20KΩ/200KΩ /2MΩ±1.0%
Frequency			2KHz±1.5%
Temperature		0℃~400℃±1.0%, 400℃~750℃±2.0%
Data holder	Yes
Max. Display	1999/ 15 x 47mm
Dimension	70x230x37mm (approx)
