Home > Products > PHYSICS > Electric meters

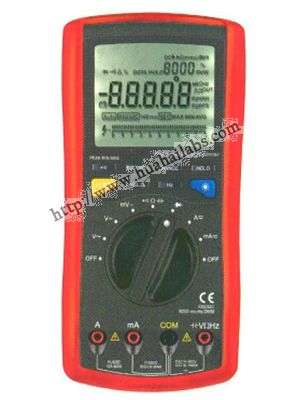

P01023, Model 70 Series Digital Multimeter

MODEL	(UT-70C)	(UT-70D)
Function	Measuring range	Measuring range
DCV	80mV/800mV/8V/80V/800V/1000V ±(0.1%+1)	80mV/800mV/8V/80V/800V/1000V ±(0.05%+10)
ACV	800mV/8V/80V/800V/1000V±(1%+3)	800mV/8V/80V/800V/1000V±(0.8%+20)
DCA	80mA/800mA/8A/10A±(0.3%+2)	80mA/800mA/8A/10A±(0.2%+40)
ACA	80mA/800mA/8A/10A±(0.8%+2)	80mA/800mA/8A/10A±(0.5%+2)
Resistance	800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ ±(0.5%+1)	200Ω/2kΩ/20kΩ/2MΩ/200MΩ ±(0.3%+40)
Capacitance	1nF/10nF/100nF/1uF/10uF/100uF±(2%+3)	1nF/10nF/100nF/1uF/10uF/100uF±(2%+3)
Frequency	1kHz/10kHz/100kHz/MHz±(0.02%+1)	1kHz/10kHz/100kHz/MHz±(0.02%+1)
LCD size	62 x 53 mm
RS232	YES
Power	9V, 6F22
Max. Display	7999
Dimension	195 x 90 x 40 mm
