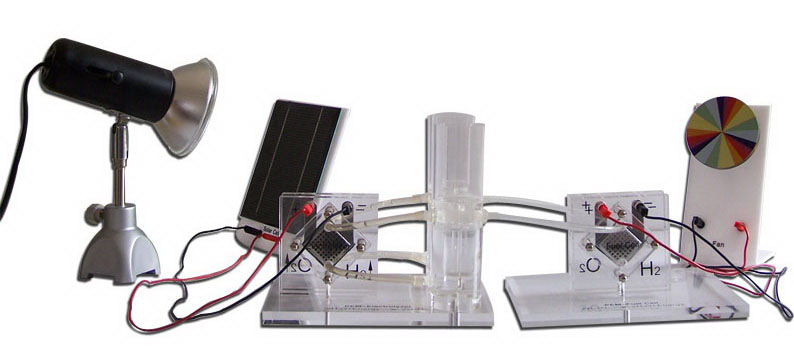

Solar hydrogen experimentation system consisting of solar module,PEM electrolyzer,hydrogen and oxygen storage tanks, PEM fuel cell,and electric load;mounted on a black base plate.

Anode: 2H2→4H+ ＋4e-

Cathode: O2 ＋4H+ ＋4e- →2H2O

Entireness: 2H2 ＋O2→ 2H2O ＋Energy

Specification

Electrolyzer:1.5W

Fuel cell:600mW

Gas storage:60cm3 H2; 60cm3 O2

Solar cell: 3V/560mA

Fan:20mW

LxWxH: 500x120x140mm

Weight: 1000g
