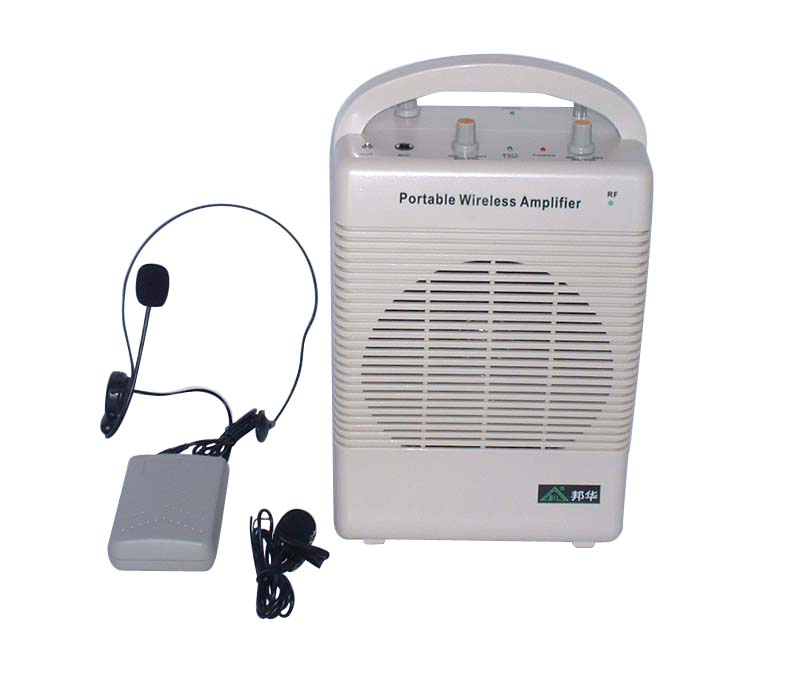

AV04005, PORTABLE WIRELESS AMPLIFIER

INTERGRATED RECEIVER, TRANSMITTER AND POWER AMPLIFIER
Mute mode	Dual quiet of voice code and field intensity
Constant frequency	Quartz phase lock loop
Working frequency	(190-260) MHz
Frequency response	(40-11000) Hz
Working humidity	0°~ 45°
Effective range	Radius 30-120m
Gross audio frequency distortion	< 1%
Built-in battery	Yes for SY912
RECEIVER TECHNICAL PARAMETER (INCLUDING POWER AMPLIFIER)
Working frequency	(190-260) MHz
Receive sensitivity	(15-20) dBμV
Diacone adjustment	±10dB
Frequency stability	0.005%
Signal to noise ratio	>88 dB
Audio frequency output power	30W(Max.)
Mic input	Less than 100mV required
Recording output	≤75mV
Working voltage	220V/50Hz; 110V/60Hz
External DC voltage	DC 12V
TRANSMITTER SPECIFICATION AND TECHNICAL PARAMETER
Working frequency	(190-260) MHz
Modulation mode	FM broadband modulation
Modulation frequency deviation	±75K
Frequency stability	0.005%
Radio-frequency power	≤10mV
Microphone capsule type	Back electrode type electret condenser
Antenna	Fully suppressed
Battery (3V)	LR6 1.5VX2
Electricity current consumption	≤45mV
Continuous working time (for reference only)	Energizer alkaline battery 35 hours
